FPSO Ruby II Inclining Test

The main purpose for Inclining Test is to get the weight, LCG, TCG and VCG of the ship before she sailed away. It is also required in the following cases:-

~ Any new ship, after its completion,

~ Any ship, if deemed necessary by the Society, where any alterations are made so as to materially affect the stability. (Source from Veristar)

Our Inclining Test started on July 13, 2009 (gile lame baru nak update hihu) at 1800. We started late in the evening to avoid disturbance for all contractors to do their job during working hour.

Design team together with PMTs, Maritime and subcontractors were overnight on the ship until 0730. For this Inclining Test we were using water ballast hence it takes hours to complete depending the pump capacity and speed. After ballasting, we need to do sounding in order to check the water level. These tasks was challenging, not to mentioned tiring since you need to carefully ballast the correct amount of water.

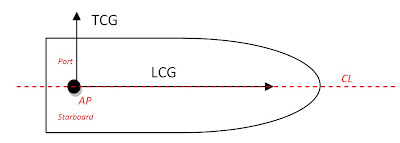

LCG – Longitudinal Center Gravity

- Distance from Aft Perpendicular (AP) of ship to frame

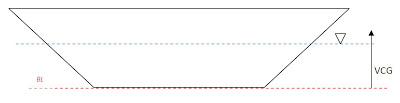

VCG – Vertical Center Gravity

- Distance from Baseline (BL) of ship to deck level

TCG – Traverse Center Gravity

- Distance from Centerline (CL) of ship to Starboard side (SB) or Portside (P)

PMT – Project Management Team or Operation Team

Enjoy the pixel!

draft reading sebelum start inclining

uma…our focal person plus runner paling berjaya during inclining

mari makan dulu sebelum mule keje

makan lagi wei

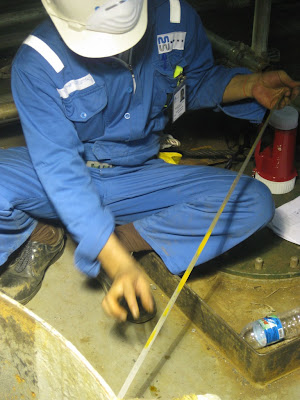

masukkan sounding tape elok2 rosak nie beribu2 wei

again..bace sounding tape

orang penting inclining test…calculation depand dekat doran..fairuz and siti

Mule2 kite sapu water paste elok2 lepas tu campak balik dan akhirnya ikan besar!!!!

Ballasting dalam proses

Mari ramai2 bace sounding tape

Tunggu ballast water setel

Sounding reading

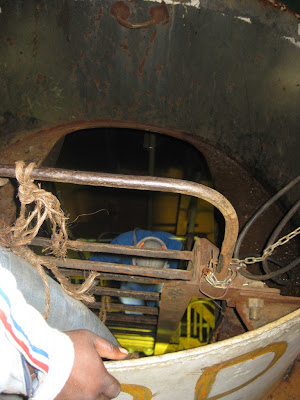

Someone sukerela turun dalam tank…ngeri

Take a break

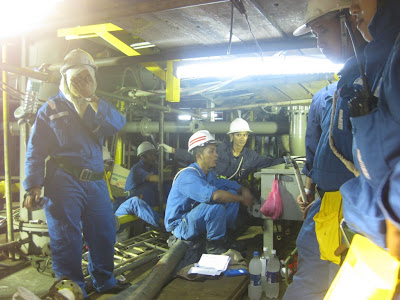

Midship condition during midnight below module…panas wei kat sini

Sounding Instrument

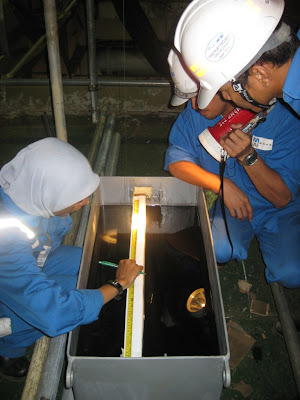

Pendulum Reading at Fwd

Pendulum Reading at Aft

FPSO Ruby II Inclining Test Team
